ASTM D1160 Digital Vacuum Distillation Analyzer for Petroleum Products

বেসিক ইনফরমেশন

উৎপত্তি স্থল:	চীন
পরিচিতিমুলক নাম:	Advanced Instruments
সাক্ষ্যদান:	ASTM D1160
মডেল নম্বার:	ভিডি-আর৩

ন্যূনতম চাহিদার পরিমাণ:	1 সেট
মূল্য:	US$10000-15000/set
প্যাকেজিং বিবরণ:	প্লাইউড কেস
ডেলিভারি সময়:	15 দিন
পরিশোধের শর্ত:	টি/টি, এল/সি, ডি/পি
যোগানের ক্ষমতা:	প্রতি মাসে 500sets

ভালো দাম এখন যোগাযোগ

পরীক্ষার মান:	ASTM D1160, GB/T9168	পাওয়ার সাপ্লাই:	এসি 220 ভি ± 10%, 50 হার্জেড
মোট বিদ্যুৎ খরচ:	≤1800W	ফ্লাস্ক হিটিং ফার্নেস পাওয়ার:	0~500W, সামঞ্জস্যযোগ্য
সর্বনিম্ন তাপমাত্রা:	≤ - 40 ºসে	পরম চাপ পরিমাপ পরিসীমা:	(2.00-170.00) Mmhg ± 0.01 Mmhg
আপেক্ষিক আর্দ্রতা:	≤ 85%	নেট ওজন:	78 কেজি
বিশেষভাবে তুলে ধরা:	ASTM D1160 Laboratory Oil Distillation Analyzer , Petroleum Product Vacuum Distillation Analyzer , Vacuum Distillation Test unit

Product Description

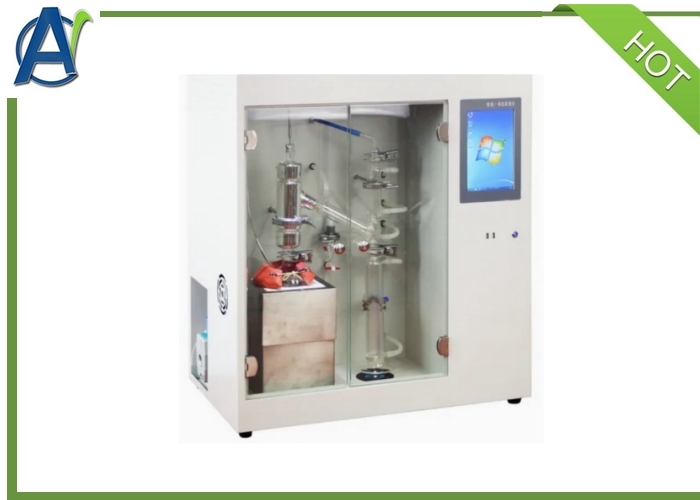

This Digital Vacuum Distillation Analyzer for Petroleum Products is designed and made as per the national standard of People's Republic of China GB/T 9168 Test Method for Distillation of Petroleum Products at Reduced Pressure.

The Automatic Vacuum Distillation Tester is used to determine the range of boiling points for petroleum products that can be partially or completely vaporized at a maximum liquid temperature of 400℃.

Product Advantages

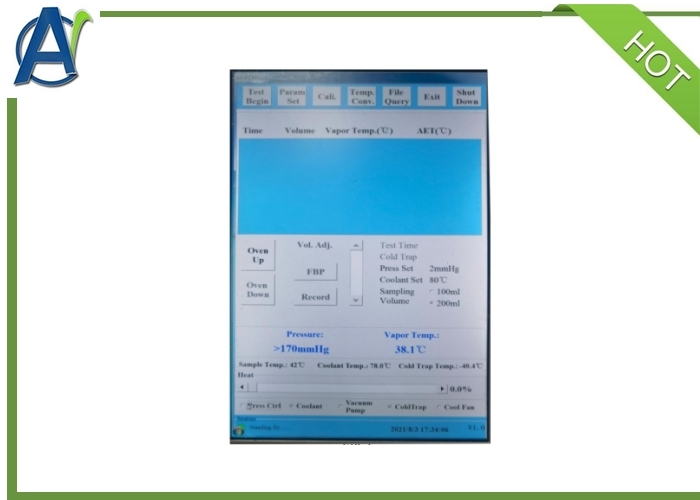

1.This friendly man-machine interface was formed by IPC with built-in 10.1 inch LCD color touch screen, 1280×800 dpi, and advanced design concept. The user can get to know the current state of the instrument in real time, and feel convenient to do all kinds of operations. The test process and various hints designed by the system can help users to operate the instrument correctly and make the experiment go smoothly.

2.Vacuum degree control system:vacuum degree is controlled by the system automatically. The high vacuum and high stability of the system can be maintained during the test. The setting range of the vacuum is 2~50 mmHg. The vacuum pressure is displayed in digital, the control precision refer to point 8 Accuracy of absolute pressure control in item IIITechnical indexes and parameters .

3.There is a built-in cold trap in the instrument. This Petroleum Product Vacuum Distillation Analyzer adopts semiconductor refrigeration technology. The structure of the refrigeration device is small and compact.

4.The system can automatically convert the test temperature into normal pressure temperature according to current pressure of the vacuum system. The user can be relieved from the table lookup, but also improve the accuracy of the conversion.

5.Cooling water circulation system: the system can automatically control the temperature of the cooling water at the setting temperature with the range of ±3℃. After test, the water of the circulation system will flow back to the water tank. The tank is equipped with a liquid level observation window and overflow hole to avoid water over-adding. The tank is also equipped the switch of the liquid level, it will refuse to heat or start the water bump without water.

6.The heating power of the distillation flask can be adjusted with the touch screen. It is displayed on the screen in a scroll bar mode. It can be adjusted at any time and with the precision of 0.5%.

7.Electric lifting platform control system, user can control the lifting platform up, down and stop by pushing the button on the screen. The built-in function of up and low limit ensures the safety of the glass instrument.

8.The built-in condensate automatic take-back system works as below. The cold trap collects the oil vapor during the test. After test, with the temperature of the cold trap increasing , the oil vapor will be liquefied and automatically flow back into the take-back bottle for the user to take out and measure.

9.The flask and measuring cylinder are equipped with special lights for easily observation and data reading.

10.The system is equipped with the nitrogen port. When test finishes, the system will remind the user to open the valve of the nitrogen port to avoid the dangerous caused by the air coming into the vacuum system. It can further insure the safety of all the system.

11.With a single key press,the user can record the initial distillate point and its time, or the recovery temperature and its time of the current recovery volume.

12.The test data will be saved and the test report can be generated automatically. And also the data can be transfer through U disk, or connect with the printer through the USB interface, and print out the test report directly.

13. After the test, the system will start the cooling fan automatically, and lower the lift platform to make the furnace leave the flask, quickly reduce the temperature of the furnace and the flask, shorten the waiting time.

The Technical Specifications and Parameters

Operating power supply	AC(220±10%)V 50Hz
Total power consumption	≤1800W
Flask heating furnace power	0~500W (continuously adjustable)
Range of the temperature control for condensate circulating water	room temperature +5℃(lowest 30℃)~80±3℃,continuously adjustable
Absolute pressure setting	2mmHg,5mmHg,10mmHg,20mmHg,50mmHg
Absolute pressure measurement range	2.00~170.00 mmHg, automatic constant
Accuracy of absolute pressure control	Pressure<1kPa(7.5mmHg),accuracy<0.01kPa(0.075mmHg) Pressure≥1kPa(7.5mmHg),accuracy≤1% of absolute pressure
Working environment	Ambient temp.:5~35℃, RH:< 85%
Dimensions	800mm×500mm×900mm(L×W×H)
Net Weight	78kg

ASTM D1160 Digital Vacuum Distillation Analyzer for Petroleum Products 1

1.What's the delivery time?
About 30days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
